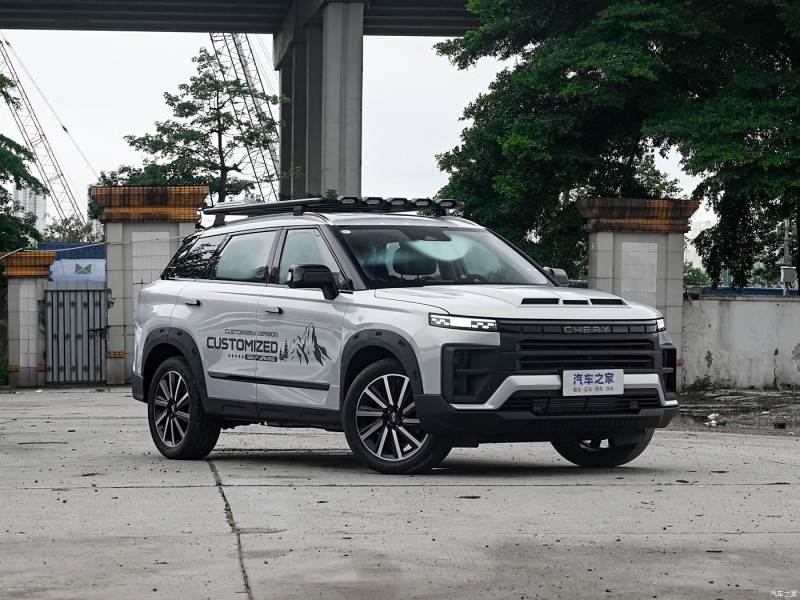

Chery Exploration 06 2024 official revised 1.6T four-drive Secret Knight

2024 official revised 1.6T four-drive Secret Knight

essential parameter

manufacturer

Chery automobile

rank

compact SUV

Energy type

gasoline

Environmental standards

country VI

time to market

2024.04

maximum power (kW)

145

acrot orque (Nm)

290

gear-box

7 block wet type double clutch

bodywork

A 5-door, 5-seat SUV

engine

1.6T197 hp L4

Long * width * height (mm)

4552*1905*1789

Official 0-100 km/h Acceleration (s)

Top vehicle speed (km/h)

201

WLTC combined fuel consumption (L / 100km)

7.48

Vehicle warranty

The first car owner warranty policy

● Unlimited years / mileage
(exemption clause to the official)

curb weight (kg)

1620

Maximum full load mass (kg

2114

Total mass of quasi-trailer (kg)

750

body of car

length (mm)

4552

width (mm)

1905

altitude (mm)

1789

wheel base (mm)

2672

front gauge (mm)

1582

rear track (mm)

1604

No-load minimum ground clearance (mm)

200

approach angle ()

20

departure angle ()

24

Maximum wading depth (mm)

605

bodywork

SUV

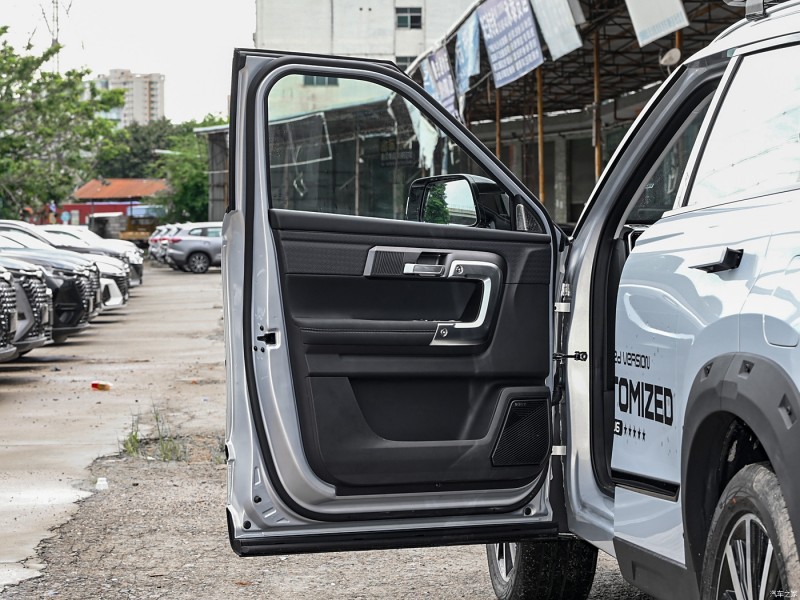

Door opening mode

vertical hinged door

Number of doors (one)

●5

Number of seats (individual)

●5

fuel tank capacity (L)

57

Trunk volume (4

410-1338

coefficient of drag (Cd)

engine

engine type

SQRF4J16C

displacement (mL)

1598

displacement (L)

1.6

Intake form

turbocharging

Engine layout

Horizontal

Cylinder arrangement form

L

Number of cylinders (individual)

4

Number of valves per cylinder (s)

4

admission gear

DOHC

maximum horsepower (Ps)

197

maximum power (kW

145

Maximum power rotation speed (rpm)

5500

acrot orque (Nm)

290

Maximum torque rotation speed (rpm)

2000-4000

Maximum net power (kW)

136.5

Engine-specific technology

DVVT

Energy type

gasoline

Recommended fuel standard

No.92

Oil supply method

Direct spray

Cylinder cap material

alufer

Cylinder material

alufer

Environmental standards

country VI

gear-box

the abbreviated form of a name

7 block wet type double clutch

Number of gear

7

Transmission type

Wet dual-clutch transmission (DCT)

Chassis steering

Drive way

● Front-engine

Four-wheel drive form

● timely four-wheel drive

Central differential structure

● multi-plate clutch

Front suspension type

● McPherson type independent suspension

Rear suspension type

● Multi-link type independent suspension

Power type

● electric power

car body structure

Carrying type

Wheel brake

Front Brake Type

● Ventilation Disc

Rear brake type

● disk

Parking brake type

● Electronic Parking

Front tire specifications

●235/50 R19

Rear tire specifications

●235/50 R19

Formal specification

● is not full size

Place the spare tire

Inside the ● trunk

Passive safety

Main / passenger seat safety gas wife

Main ● / Deputy ●

Front / rear row side gas wife

Front ● / Post-

Front / rear head air wife (air curtain)

Pre- ● / post- ●

Active safety

ABS anti-lock

●

Braforce Distribution (EBD / CBC etc.)

●

Brake Assist (EBA / BAS / BA, etc.)

●

Traction control (ASR / TCS / TRC, etc.)

●

Body stability control (ESC / ESP / DSC, etc.)

●

Tire pressure monitoring function

● tire pressure display

The seat belt is not reminded

● whole car

ISOFIX Child seat interface

●

Lane departure warning system

●

Active brake / active safety system

●

Fatigue driving tips

DOW open the door for early warning

●

Forward collision warning

●

Rear collision warning

●

Built-in dashcam

●

Road rescue call

●

Driving control

Driving mode switch

● Sports
● economy
● Standard / comfortable
● off-road
● Snow

Engine start-stop technology

●

Automatic parking

●

uphill assist

●

The steep slope slow down

●

Four-wheel drive / off-road

Drag hook

● hand movement

Driving hardware

Front / rear parking radar

Pre- ● / post- ●

Driving assistance images

● 360-degree panoramic image

Transparent chassis / 540 ° image

●

Ahead sensing camera

● monocular

Number of cameras

● 5

Number of ultrasonic radars

● 8

Driving function

Cruise system

● Full-speed adaptive cruise

Auxiliary driving level

●L2

Revercar side warning system

●

satellite navigation system

●

Navigation road condition information display

●

Map brand

● Gaud

And line auxiliary

●

Lane-keeping assist system

●

Road traffic sign identification

●

Start to remind

●

Appearance / anti-theft

Wheel material

● alufer

Electric trunk

●

Sensing the trunk

●

Electric trunk position memory

●

roof rack

●

Engine electronic anti-theft

●

Central control lock in the car

●

Key type

● Remote Control Key
● Bluetooth Key

Keyless start system

●

Keyless entry function

● drivers position

Hide the electric door handle

●

Remote start function

●

Car side foot pedal

* fixed

Outside the car lights

Near light light source

●LED

High beam light source

●LED

LED daytime running lights

●

Adaptive near and far light

●

Automatic headlights

●

Front fog lamp

Headlight height adjustable

●

Headlights are shut down delay

●

Sunroof / glass

Sunroof type

● The panoramic skylight can be opened

Front / rear power windows

Pre- ● / post- ●

Window one-key lift function

● whole car

Window anti-clamp hand function

●

Inside the car makeup mirror

● Main driver + lighting
● copilot + lighting

After the wiper

●

Sensing wiper function

● rainfall induction

External rearview mirror

External rearview mirror function

● Electric adjustment
● electric folding
● rearview mirror memory
● rearview mirror heating
● lock car automatic folding

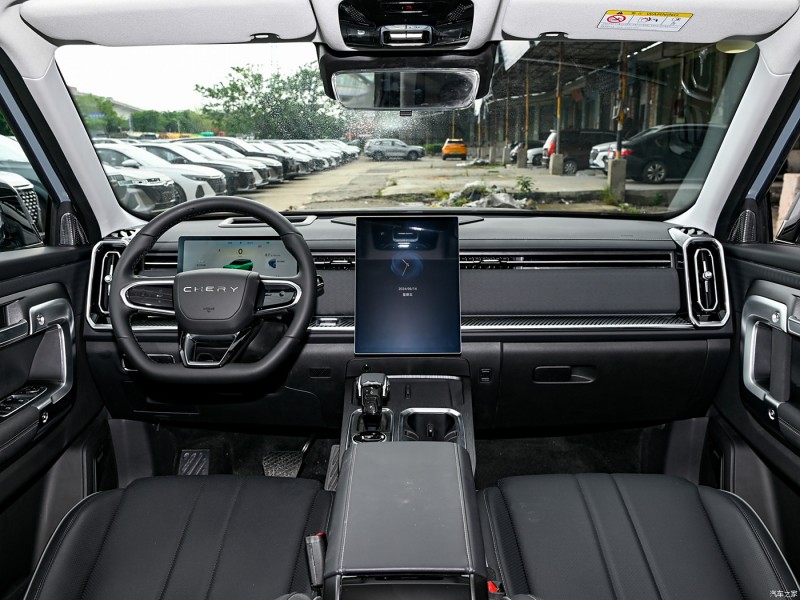

Screen / System

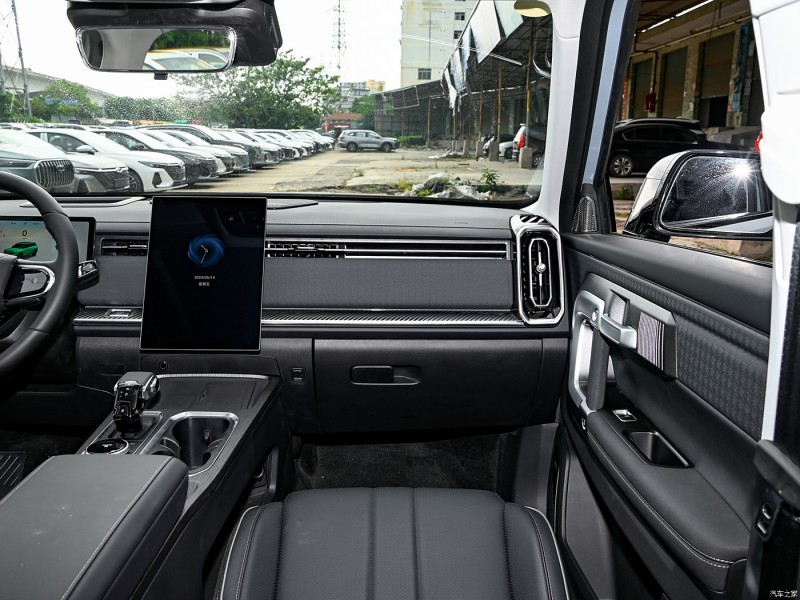

Central control color screen

● touch LCD screen

Central control screen size

● 13.2 in

Bluetooth / vehicle phone

●

Mobile phone interconnectivity / mapping

● Support CarPlay
● support HUAWEIHiCar

Speech recognition control system

●

Voice assistant wake-up words

●Hello , little wonder

Voice subarea wake-up recognition

● single region

Car wit chip

● Qualcomm Snapdragon 8155

Multi-finger flying screen control

●

Intelligent configuration

The Internet of cars

●

4G/5G network

●4G

OTA upgrade

●

Wi-Fi hot spot

●

Mobile phone APP remote function

● Door control
● window control
● vehicle start
● lamp control
● air conditioning control
● vehicle condition query / diagnosis
● vehicle positioning / search

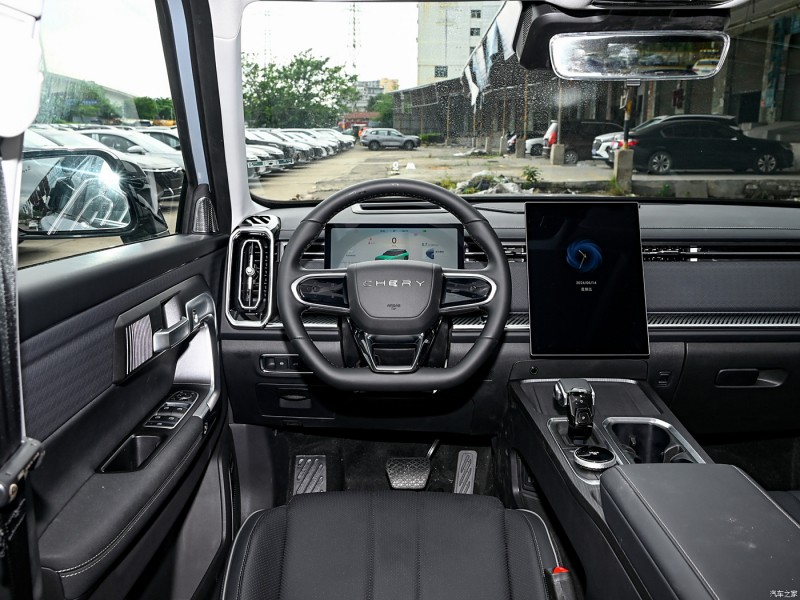

Steering wheel / inner rearview mirror

Steering wheel material

● corium

Steering wheel position adjustment

● Manual up and down + before and after adjustment

Shift form

● Electronic gear bars to shift gear

Multi-functional steering wheel

●

Steering wheel shift

Steering wheel heating

The steering wheel memory

The driving computer display screen

● multicolour

Full LCD dashboard

●

LCD meter size

● 10.25 in

The HUD head-up digital display

●

Internal rearview mirror function

● manual anti-glare

Charging in the car

Multimedia / charging interface

●USB●Type-C

Number of USB / Type-C interfaces

● 2 front row / 2 back row

The 220V / 230V power supply

●

Mobile phone wireless charging function

● front row

Mobile reless charging power

●50W

The compartment 12V power interface

●

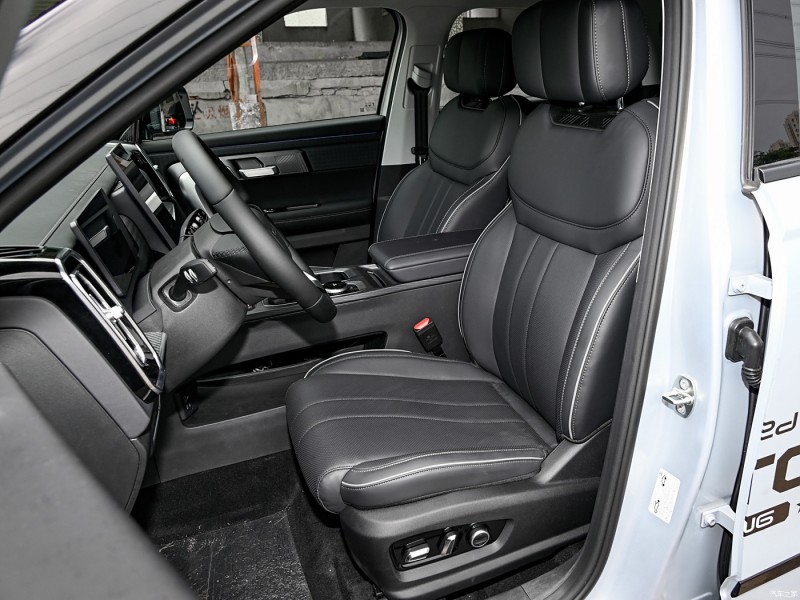

Seat configuration

Seat material

● imitation leather

Main seat adjustment mode

● Front and rear adjustment
● backrest adjustment
● high and low adjustment (2 way)
● waist support (4 way)

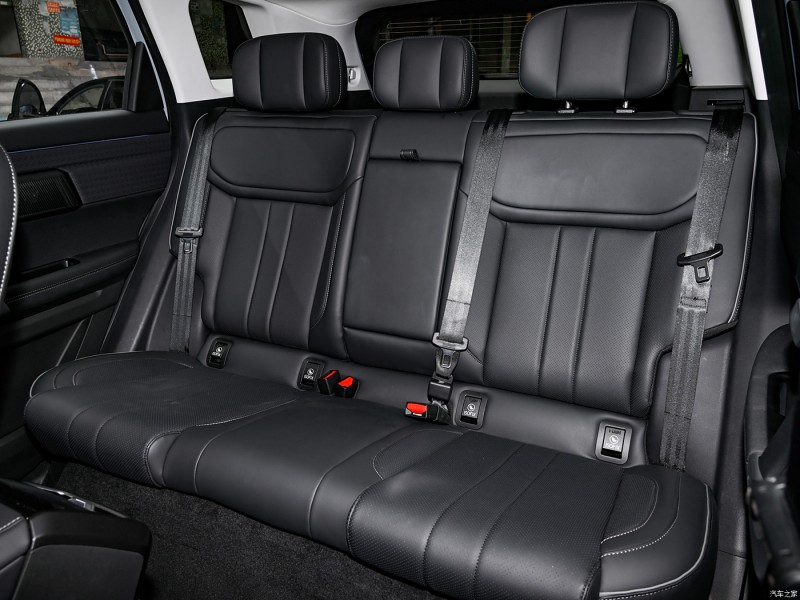

Secondary seat adjustment mode

● Front and rear regulation
● backrest regulation

Main / passenger seat electric adjustment

Main ● / Deputy ●

Front seat function

● Heating ● Ventilation

Electric seat memory function

● drivers position

Adjustable button in the rear seat of the passenger seat

Second-row seat adjustment

● on-back regulation

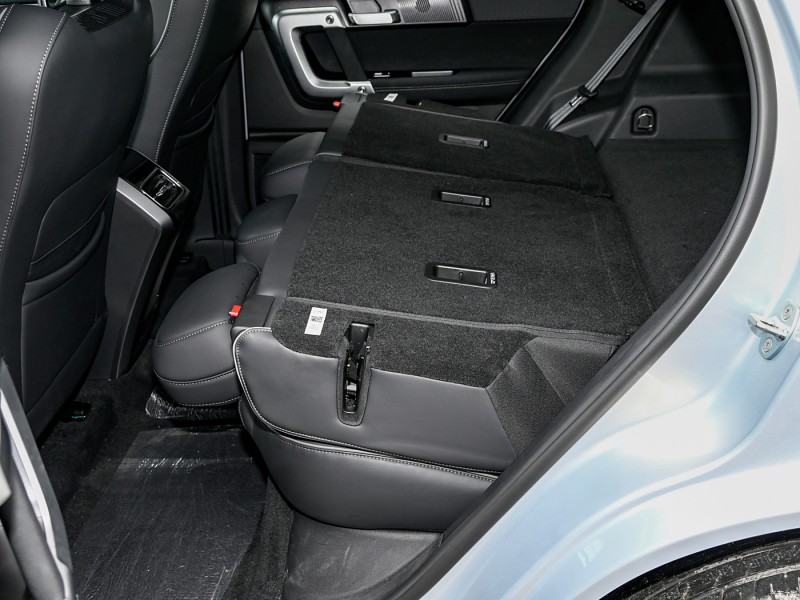

The rear seat is inverted form

● ratio down

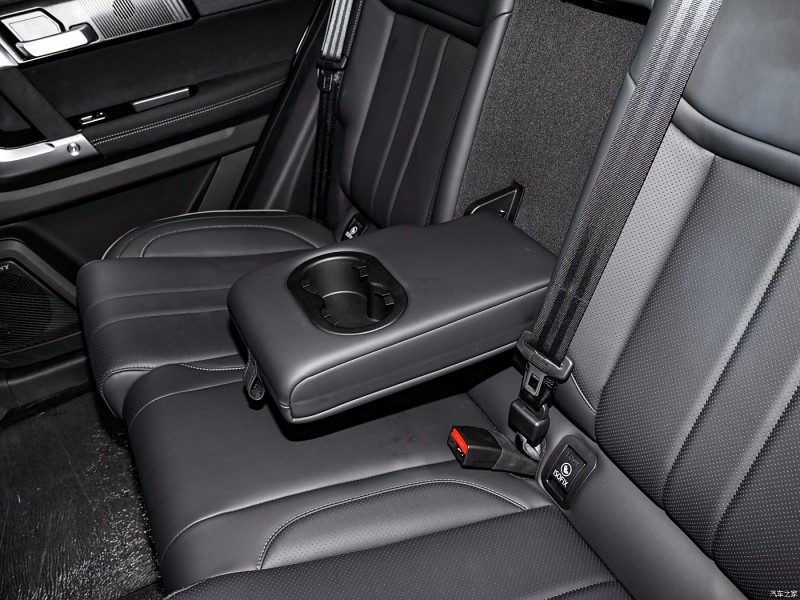

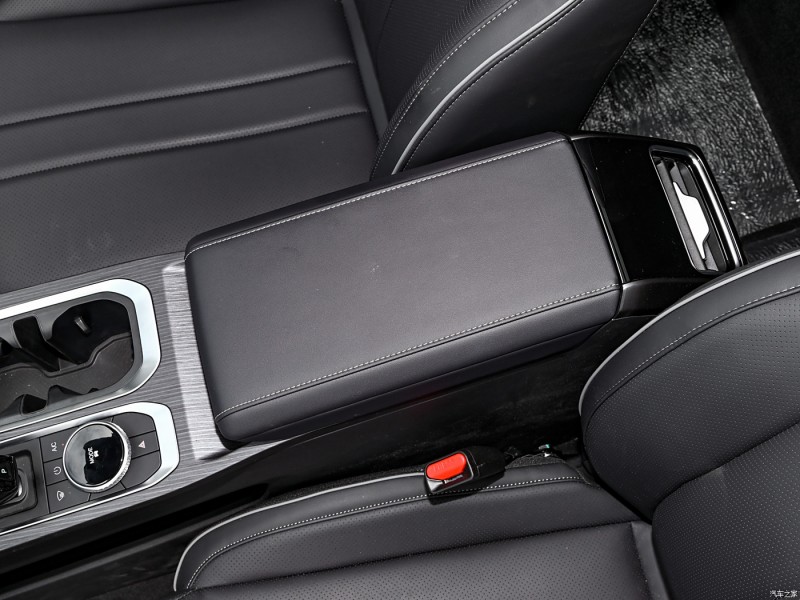

Front / rear center armrest

The anterior ● / posterior

The rear cup holder

●

Sound / car lighting

Speaker brand name

●SONY Sony

Number of speakers

● 8 horn

Interior environment atmosphere lights

● 64 colors

Air conditioning / refrigerator

Air-conditioning temperature control mode

● Automatic Air Conditioning

Rear independent air conditioning

The back seat air outlet

●

Temperature partition control

●

Car-mounted air purifier

●

Interior PM2.5 filter device

●

negative ion generator

●
